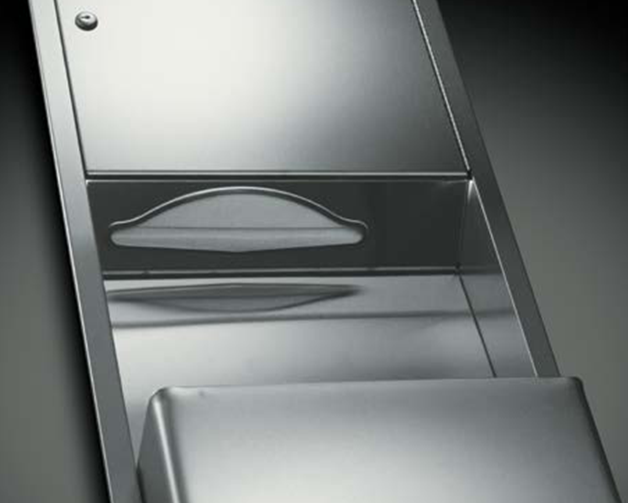

Traditional Collection
This time-honored collection provides exceptional value, offering a broad array of items for well-equipped washrooms.Double-pan doors incorporate a “no-flex” structural fiber board core. Combining seamless construction and crisp design lines, this elegant collection provides strength, comfort, beauty and durability. All units have keyed-alike tumbler locks for ease in maintenance. Automatic dispensers feature a proximity sensor activated dispensing mechanism. |
|
Stainless Steel Construction
Fabricated with 22 gauge stainless steel with face trim, the recessed cabinet features one-piece construction with no miters or welding for durability. |
 |
Double-Pan Doors
The double-pan doors incorporate a “no-flex” structural fiberboard core, adding strength and endurance for long-term use. |
 |
Safe Easy Dispensing
Towel dispensers have hemmed opening for safe, easy dispensing, minimizing waste and ensuring hygienic use. |
 |
Easy Lift Out Receptacle
Fully removable stainless steel waste cans allow contents to be easily discarded for efficient ongoing maintenance and cleanliness. |
|
Traditional CollectionChoose the best one that suits you! |

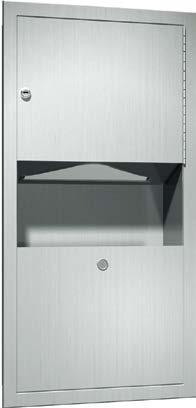

0462-AD Paper Towel Dispenser and Waste Receptacle Dispenses 350 C-fold or 475 multi-fold paper towels. 2 gal. (7.6 L) waste receptacle. Model Options 0462-AD-9 Surface mounted with 9" stainless steel collar. Unit Size 14 1/14" x 28" x 4 1/4" (362 x 711 x 108 mm)
Wall Opening 12 3/4" x 26 1/2" x 4" (324 x 673 x 102 mm)
|

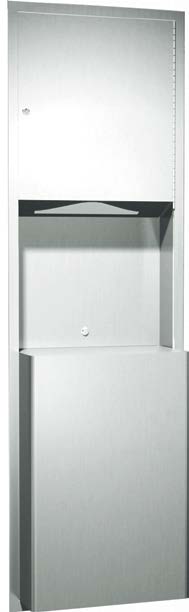

0469 Paper Towel Dispenser and Waste Receptacle Dispenses 600 C-fold or 800 multi-fold paper towels. 12 gal. (46 L) stainless steel waste receptacle. Model Options 0469-2 Semi-recessed with 2" stainless steel collar. 0469-9 Surface mounted with 9" stainless steel collar. 0469-BL 18 gal. (68 L) waste receptacle. Projects 8" (205 mm) from wall. Unit Size 17 1/4" x 56" x 4 1/4" (438 x 1422 x 108 mm)
Wall Opening 15 3/4" x 54 1/2" x 4" (400 x 1384 x 102 mm) |

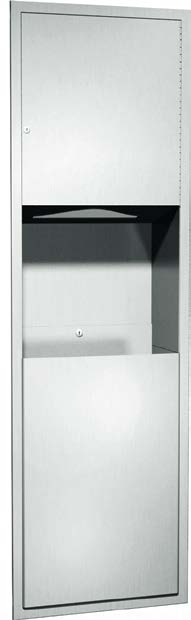

04697 Recessed Paper Towel Dispenser and Waste Receptacle Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels. 12 gal. (46 L) stainless steel waste receptacle. Model Options 04697-4 Semi-recessed with 4" stainless steel collar. 04697-9 Surface mounted with 9" stainless steel collar. 04697-BL 18 gal. (68 L) waste receptacle, projects 4" (102 mm) from wall. Unit Size 17 1/4" x 56" x 7 1/4" (438 x 1422 x 184 mm)
Wall Opening 15 3/4" x 54 1/2" x 7 1/4" (400 x 1384 x 184 mm) |

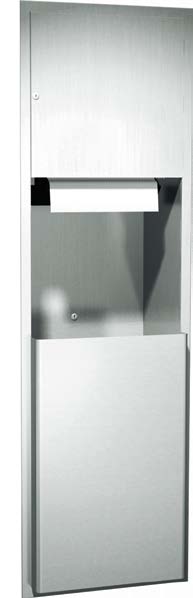

04692A Automatic Roll Paper Towel Dispenser and Waste Receptacle Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8" or 9" (205 or 230 mm) wide, 800 ft. (244 m) long rolls. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. 04692: Mechanical lever dispenser. Unit Size 17 1/4" x 56" x 10 1/4" (438 x 1422 x 260 mm)
Wall Opening 15 3/4" x 54 1/2" x 10" (400 x 1384 x 254 mm) |

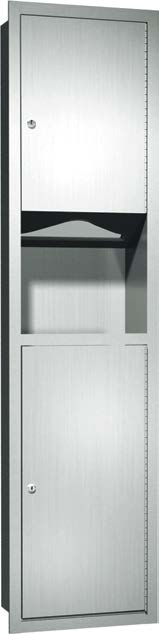

0467 Paper Towel Dispenser and Waste Receptacle Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels. 6 gal. (22.7 L) stainless steel waste receptacle. Model Options 0467-2 Semi-recessed with 2" stainless steel collar. 0467-9 Surface mounted with 9" stainless steel collar. Unit Size 13" x 55" x 6 1/2" (330 x 1397 x 165 mm)
Wall Opening 11 1/2" x 53 1/2" x 6 1/4" (292 x 1359 x 159 mm) |

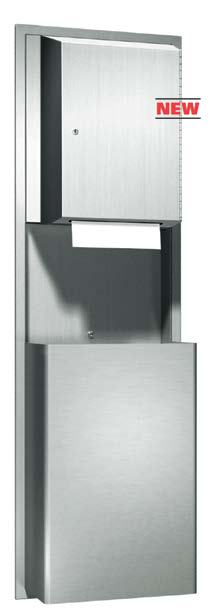

046926 Semi-Recessed Roll Paper Towel Dispenser and Waste Receptacle Cabinet Dispenses single full width cut towel 12" (305 mm) long from pull-towel autocut dispenser. With manual override feed wheel on the side of the cabinet. Unit Size 17 1/4" x 56" x 91/4" (438 x 1422 x 235 mm)
Wall Opening 15 3/4" x 54 1/2" x 4" (400 x 1384 x 102 mm) |

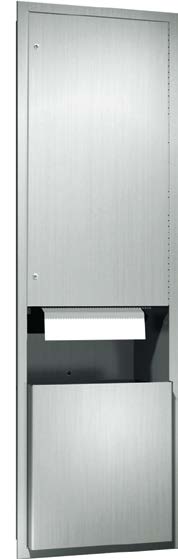

046921A Automatic Recessed Roll Towel Dispenser and Waste Receptacle Proximity sensing no-touch recessed unit dispenses a pre-set length per cycle from 8" or 9" (205 or 230 mm) wide, 800 ft. (244 m) long rolls. 12 gal. (45.4 L) waste receptacle. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. 046921: Mechanical lever dispenser. Unit Size 17 1/4" x 56" x 10 1/4" (438 x 1422 x 260 mm)
Wall Opening 15 3/4" x 54 1/2" x 10 1/4" (400 x 1384 x 260 mm) |

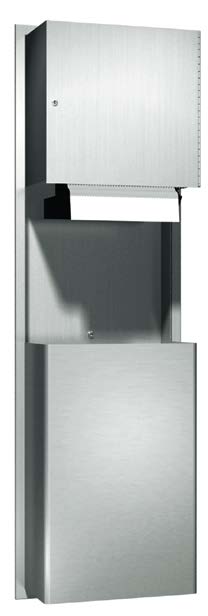

046924A Automatic Recessed Roll Towel Dispenser and Waste Receptacle Proximity sensing no-touch recessed unit dispenses a pre-set length per cycle from 8" or 9" (205 or 230 mm) wide, 800 ft. (244 mm) long rolls. 12 gal. (45.4 L) waste receptacle. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. 046924: Mechanical lever dispenser. Unit Size 17 1/4" x 56" x 10 1/4" (438 x 1422 x 260 mm)
Wall Opening 15 3/4" x 54 1/2" x 4" (400 x 1384 x 102 mm) |
0457 Paper Towel Dispenser Dispenses 350 C-fold or 500 multi-fold paper towels; well-suited for smaller washrooms with less space and traffic. Model Options 0457-9 Surface mounted with 9" stainless steel collar. Unit Size 12 3/4" x 17 1/4" x 4 1/4" (324 x 438 x 108 mm) Wall Opening 11 1/4" x 15 3/4" x 4" (286 x 400 x 102 mm) |

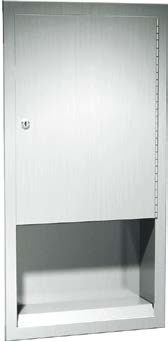

0452 Paper Towel Dispenser Dispenses 600 C-fold or 800 multi-fold paper towels. Model Options 0452-9 Surface mounted with 9" stainless steel collar. Unit Size 14 1/4" x 28" x 4 1/4" (326 x 711 x 108 mm) Wall Opening 12 3/4" x 26 1/2" x 4" (324 x 673 x 102 mm) |

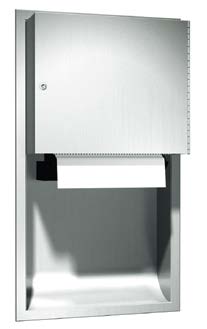

045224A Automatic Roll Paper Towel Dispenser Pre-set length dispensed from 8" or 9" wide rolls. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. 045224: Mechanical lever dispenser. Unit Size 17 1/4" x 30 1/2" x 10 1/4" (438 x 775 x 260 mm) Wall Opening 15 3/4" x 29" x 4" (400 x 737 x 102 mm) |
045210A Recess Mounted Automatic Roll Paper Towel Dispenser Suffix Options for Power/Mounting A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. Unit Size 17 1/4" x 28" x 10" (438 x 711 x 254 mm) Wall Opening 15 3/4" x 26 1/2" x 10 1/4" (400 x 673 x 260 mm) |
0458 Waste Receptacle Stainless steel waste container locks into cabinet, removable for servicing. Model Option 0458-9 Surface mounted with 9" stainless steel collar. Unit Size 17 1/4" x 30 1/2" x 8" (440 x 775 x 203 mm) Wall Opening 15 3/4" x 29" x (variable*) (400 x 740 mm) * [0458 if 4" (102 mm) x 4" and 12 gals. (46 L); 0458-CX if ½" (13 mm) x 7½" (191 mm) and 12 gals. (46 L); 0458-DX if 8" (203 mm) x 4" (102 mm) and 18 gals. (68 L)] |
04733 Waste Receptacle Self-closing panel covers the receptacle opening, removable 3 gal. (11.4 L) stainless steel waste receptacle. Unit Size 14 1/4" x 28" x 4 1/2" (362 x 711 x 114 mm) Wall Opening 12 3/4" x 26 1/2" x 4" (324 x 673 x 102 mm) |
0210 Paper Towel Dispenser Fabricated of 22 gauge stainless steel with satin finish, this unit dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters and is fitted with tumbler lock and heavy-duty stainless steel piano hinge. Model Options 204684-9 Surface mounted with 9" stainless steel collar. Overall Dimensions 11" x 14 5⁄8" x 4 1⁄16" (279 x 368 x 103 mm) |
0215 Paper Towel Dispenser- Petite Same as 0210 but reduced capacity to dispense 200 C-fold or 275 multi-fold paper towels; well-suited for low traffic areas. Overall Dimensions 11" x 8" x 4" (279 x 203 x 102 mm) |
0439 Recessed Towel Dispenser This cabinet has 2 push-up flaps for bottom-filling with towels and dispenses 600 C-fold or 800 multi-fold paper towels; designed to conceal the dispenser behind mirror or wall so only the towel tray opening is visible. *Note for Designers: Leave 6" min. (152 mm) clearance below towel tray opening for space to pull towels; units are installed before hanging mirror or applying finished wall. |
8522 Roll Paper Towel Dispenser Mechanical unit dispenses a pre-set length per cycle from 8" or 9" (205 or 230 mm) wide, 800 ft. (244 m) long rolls. Model Options 8523A Powered by 4 D-size batteries (not included). 8523AC Powered by AC plug-in adapter. 8523A-SR4 Semi-recessed with 4" stainless steel collar. 8523AC-SR4 Semi-recessed with 4" stainless steel collar. Overall Dimensions 14" x 16" x 9 1/2" (356 x 406 x 241 mm) |
8165 Roll Paper Towel Dispenser Holds standard paper towel roll up to 6" (150 mm) diameter; heavy-duty aluminum casting with satin-matte, silver-grey finish. Designed for controlled delivery of towels, and its concealed locking device on molded plastic spindle prevents theft. Overall Dimensions Unit measures 13" (330 mm) wide; projects 4" (102 mm) from wall. |
0245-SS Paper Towel Dispenser Entirely fabricated of 22 gauge stainless steel. This unit dispenses 400 single-fold paper towels. Overall Dimensions 11 1/4" x 6¼" x 5 5⁄8" (285 x 160 x 143 mm) |
0828 Waste Receptacle Fabricated of 22 gauge type 304 stainless steel with satin finish and hemmed top and bottom edges for safety; holds 6.7 gal. (25.4 L) of waste. Overall Dimensions 14" x 18" x 6" (356 x 457 x 152 mm) |
0835 Waste Receptacle 22 gauge stainless steel with satin finish; holds 17 gal. (64.4 L) with top and bottom hemmed edges; interior hooks for liner. Model Option 0826 has 12 gal. (45 L) capacity with 15¼" x 23" x 8" (387 x 584 x 203 mm) dimensions. Overall Dimensions 15 3/4" x 21 7⁄8" x 11 3/4" (400 x 556 x 298 mm) |

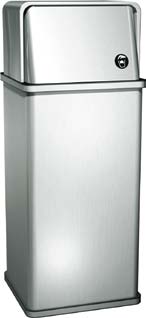

0810 Freestanding Waste Receptacle 22 gauge stainless steel with satin finish; holds 14 gal. (54 L); self-closing doors on top with vinyl wall bumpers, rubber feet and hooks for liners. Model Option 0812 has 19 gal. (72 L) capacity with 13" x 38½" x 12¼" (330 x 978 x 311 mm) dimensions. Overall Dimensions 13" x 30 1/2" x 12 1/4" (330 x 775 x 311 mm) |
0811 Freestanding Open Waste Receptacle Same features as Model 0810 except without top. Model Options 0813 has 19 gal. (72 L) capacity with 13" x 30" x 12¼" (330 x 762 x 311 mm) dimensions. Overall Dimensions 13" x 22" x 12¼" (330 x 559 x 311 mm) |
0827 Waste Receptacle Fabricated of 22 gauge type 304 stainless steel with satin finish and hemmed top and bottom edges for safety; capacity of 2 gal. (7.6 L) of waste. Overall Dimensions 101/2" x 9" x 43/4" (267 x 229 x 121 mm) |
0829 Corner Waste Receptacle Fabricated of 22 gauge type 304 stainless steel with satin finish and hemmed top and bottom edges for safety; capacity of 15.5 gal. (59 L) of waste. Overall Dimensions 15" x 23" x 14 1/2" (381 x 584 x 368 mm) |

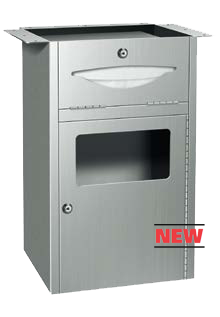

4004 Under Vanity Paper Towel Dispenser and Waste Receptacle Dispenses 300 C-fold or 475 multi-fold paper towels and has a waste capacity of 10 gal. (38 L). Waste disposal door is spring loaded to remain shut. Unit Size 17 7/16" x 24" x 14 7/16" (443 x 610 x 367 mm) Under Mount Requirements 17 1/2" x 30" x 14 1/2" (445 x 762 x 368 mm) Exposed Cabinet Size 13 1/2" x 24" x 12 1/2" (343 x 610 x 318 mm) |
1000 Circular Counter Top Waste Chute Provides waste deposit access to receptacle (not furnished) placed directly below chute; made of heavy gauge stainless steel with rolled flange and exposed surfaces that have satin finish.c Model Option 1000A has a 9" (229 mm) outside diameter with a counter opening of 81⁄8" (206 mm) diameter. Unit Size 6 3/4" (171 mm) outside diameter Counter Opening 5 3/4" (146 mm) diameter |
1001 Counter Top Mounted Paper Towel Dispenser/Waste Receptacle Capacity of 1 package of C-fold paper towels for loading by pushing through hinged dispensing flaps. Loose waste receptacle to be placed directly below waste door on the vanity floor is provided. Unit Size 14 1/4" x 15" x 3⁄32" (362 x 381 x 2 mm) Counter Opening 12 1/2" x 13 1/2" (318 x 343 mm) |
1002 Counter Top Mounted Paper Towel Dispenser Capacity of 1 package of C-fold paper towels for loading by pushing downward through hinged dispensing flaps. Unit Size 14 1/4" x 6" x 3⁄32" (362 x 152 x 2 mm) Counter Opening 12 1/2" x 4 1/4" (318 x 108 mm) |
1003 Counter Top Mounted Waste Receptacle Push door is self-closing. A 12" x 12" x 12" (305 x 305 x 305 mm) waste receptacle is furnished to be placed directly below waste door on the vanity floor. Unit Size 14 1/4" x 10" x 3⁄32" (362 x 254 x 2 mm) Counter Opening 12 1/2" x 8 3/4" (318 x 222 mm) |
|
