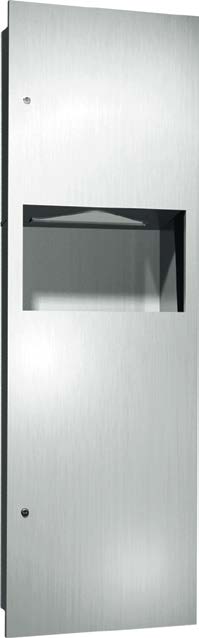

6462

Paper Towel Dispenser and Waste Receptacle

Dispenses 800 multi-fold, or 600 C-fold towels, standard. Provided adapter allows the flexibility to change the capacity to up to 1,100 single-fold paper towels. 9 gal. (34 L) stainless steel waste receptacle.

Model Options

6462-2 Semi-recessed with 2" stainless steel collar.

6462-9 Surface mounted with 9" stainless steel collar.

Unit Size

17 1/4" x 54" x 6 1/2" (438 x 1372 x 165 mm)

Wall Opening

15 3/4" x 52 1/2" x 6" (400 x 1335 x 152 mm)

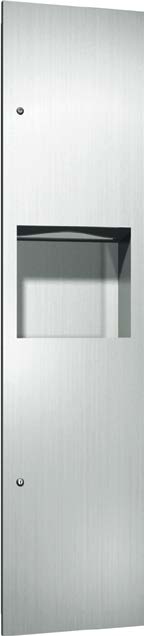

6467

Paper Towel Dispenser and Waste Receptacle

Dispenses 600 C-fold or 800 multi-fold paper towels. 5 gal. (18.9 L) stainless steel waste receptacle.

Model Options

6467-9 Surface mounted with 9" stainless steel collar.

Unit Size

13" x 55" x 4 3/4" (330 x 1397 x 121 mm)

Wall Opening

11 1/2" x 53 1/2" x 4" (292 x 1359 x 102 mm)

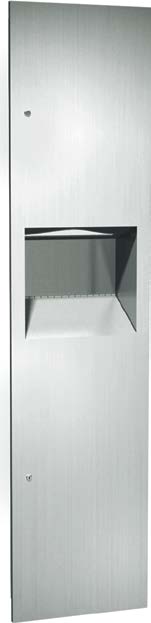

64676

Paper Towel Dispenser and Waste Receptacle

Dispenses 600 C-fold or 800 multi-fold paper towels. 5 gal. (18.9 L) stainless steel waste receptacle.

Model Options

64676-2 Semi-recessed with 2" stainless steel collar.

64676-9 Surface mounted with 9" stainless steel collar.

Unit Size

13" x 55" x 6 1/2" (330 x 1397 x 165 mm)

Wall Opening

11 1/2" x 53 1/2" x 6" (292 x 1359 x 152 mm)

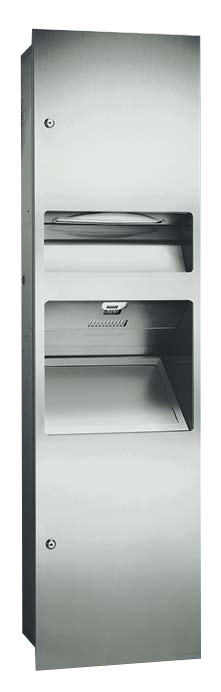

64672-1

Recessed Three-In-One Combination Unit with High-Speed Hand Dryer

Paper towel dispenser with waste receptacle and < 15 second automatic hand dryer, dispenses 500 standard multi-fold or 400 standard C-fold paper towels with a waste capacity of 6.8 gal. (26 L). Durable 20 gauge stainless steel cover has a satin finish. Dryer has 5-year warranty. 110-120V. Optional voltages available.

Model Options

64672-2 Dryer Voltage is 208-240V Dryer.

64672 Cabinet only – no hand dryer included.

Unit Size

15 3/8" x 55 3/8" x 7 1/2" (391 x 1407 x 191 mm)

Wall Opening

14 3/32" x 54 3/8" x 7 1/4" (358 x 1381 x 184 mm)

Decibel Level

68.9-74.3 dB-A @ 2M

0198-MH

Safe-Dri^TM Mental Health Approved High-Speed Hand Dryer

Anti-ligature dryer designed for Behavioral Health environments—angled top, welded corners and single tube exhaust prevent looping, tying off, wedging and prying. Tamper-resistant 18 gauge stainless steel cover, and flush pin-hex security screws. Optional voltages available.

Unit Size

12 5/8" x 15 3/4" x 5 4/16" (320 x 400 x 140 mm)

Wall Opening

11 7/8" x 14 3/4" x 5 1/8" (303 x 376 x 130 mm)

Decibel Level

66 dB-A @ 2M

0198-MH

Safe-Dri^TM Mental Health Approved High-Speed Hand Dryer

Fast drying, less than 15 seconds, operates automatically using infrared sensor with auto-resetting thermostat. Owner adjustable air speed & temperature and on/off heating options. Dryer automatically shuts off after time-out when user removes hands from sensor zone. Optional voltages available.

Unit Size

12 19/32" x 15 3/4" x 4 1/16" (320 x 400 x 103 mm)

Wall Opening

12 5/16" x 15 3/16" x 3 7/8" (313 x 386 x 98 mm)

Decibel Level

68.9-74.3 dB-A @ 2M

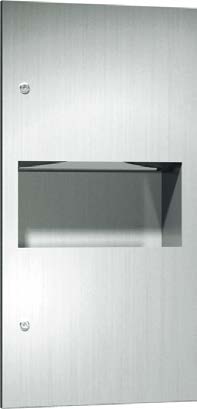

64623

Recessed Paper Towel Dispenser and Waste Receptacle

Dispenses 350 C-fold or 475 multi-fold paper towels. 2 gal. (7.6 L) stainless steel waste receptacle.

Model Option

64623-9 Surface mounted with 9" stainless steel collar.

Unit Size

14 1/4" x 28" x 4 3/4" (362 x 711 x 121 mm)

Wall Opening

12 3/4" x 26 1/2" x 4 1/4" (324 x 673 x 108 mm)

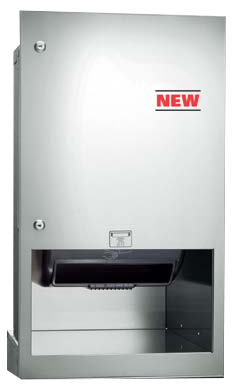

645210A

Recessed Automatic Roll Paper Towel Dispenser

Proximity sensing no-touch recessed unit dispenses an owner-adjustable length per cycle from 8" (205 mm) wide, 800 ft. (244 m) long rolls. Fabricated of 20 gauge stainless steel with satin finish.

Suffix Options for Power/Mounting

[A, A-6, A-9, AC, AC-6, AC-9]

A: Powered by 4 D-size batteries (not included).

AC: Powered by AC plug-in adapter.

-6: Semi-recessed with 6" stainless steel collar.

-9: Surface mounted with 9" stainless steel collar.

645210: Mechanical lever dispenser.

Unit Size

16 3/50" x 28" x 9" (408 x 711 x 229 mm)

Wall Opening

15 3/4" x 26 1/2" x 10 1/4" (400 x 673 x 260 mm)

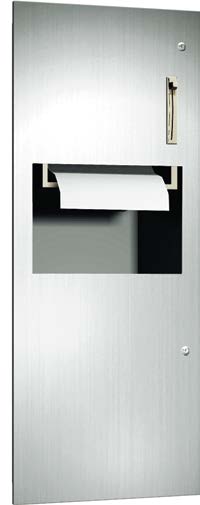

64696

Roll Paper Towel Dispenser and Waste Receptacle

Mechanically dispenses 8" or 9" (205 or 230 mm) wide, 800 ft. (244 m) long rolls in pre-set lengths of 2½", 4" or 5" (65, 100 or 125 mm) per stroke. 8.6 gal. (32.6 L) stainless steel waste receptacle.

Model Options

64696-6 Semi-recessed with 6" stainless steel collar.

64696-9 Surface mounted with 9" stainless steel collar.

Unit Size

16 1/16" x 41 1/4" x 9 5/8" (408 x 1048 x 245 mm)

Wall Opening

14 5/8" x 39 3/4" x 9 1/4" (371 x 1010 x 235 mm)

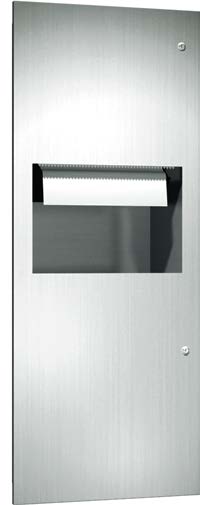

64696A

Automatic Roll Paper Towel Dispenser and Waste Receptacle

Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8" or 9" (205 or 230 mm) wide, 800 ft. (244 m) long rolls. 8.6 gal. (32.6 L) stainless steel waste receptacle.

Suffix Options Power/Mounting

[A, A-6, A-9, AC, AC-6, AC-9]

A: Powered by 4 D-size batteries (not included).

AC: Powered by AC plug-in adapter.

-6: Semi-recessed with 6" stainless steel collar.

-9: Surface mounted with 9" stainless steel collar.

64696: Mechanical lever dispenser.

Unit Size

16 1/16" x 41 1/4" x 101/4" (408 x 1048 x 261 mm)

Wall Opening

14 5/8" x 39 3/4" x 10" (371 x 1010 x 254 mm)

6457

Paper Towel Dispenser

Well-suited for the smaller washroom with less space and traffic, this unit dispenses 350 C-fold or 475 multi-fold paper towels.

Unit Size

12 3/4" x 17 1/4" x 4 1/2" (324 x 438 x 114 mm)

Wall Opening

11 1/4" x 15 3/4" x 4 1/4" (286 x 400 x 108 mm)

6452

Paper Towel Dispenser

Dispenses 600 C-fold or 800 multi-fold paper towels.

Model Option

6452-9 Surface mounted with 9" stainless steel collar.

Unit Size

14 1/4" x 28" x 4 1/2" (362 x 711 x 114 mm)

Wall Opening

12 3/4" x 26 1/2" x 4 1/4" (324 x 673 x 108 mm)

6459

Waste Receptacle

Stainless steel waste receptacle holds 4 gal. (15 L) of waste and has a self-closing panel that covers its opening.

Unit Size

14 1/4" x 28" x 4 1/2" (362 x 711 x 114 mm)

Wall Opening

12 3/4" x 26 1/2" x 4 1/4" (324 x 673 x 108 mm)

6474

Waste Receptacle

Stainless steel waste receptacle holds 12 gal. (45.4 L) of washroom waste materials.

Model Option

6474-2 Semi-recessed with 2" stainless steel collar.

Unit Size

17 1/4" x 40" x 6 3/4" (438 x 1016 x 171 mm)

Wall Opening

15 3/4" x 38 1/2" x 6 1/4" (400 x 978 x 159 mm)

6468

Simplicity Collection Dual Napkin/Tampon Vendor

Dispenses 30 feminine napkins and 27 tampons. Universal coin mechanism allows for 25¢, 50¢ and free (no coin) operation. Choose appropriate suffix (-25, -50 or –F). Its door has 2 tumbler locks. Its inside coin box has a separately keyed lock.

Model Option

64684 designed for 4" (102 mm) wall opening; dispenses 15 napkins and 23 tampons.

Unit Size

17 1/4" x 27 1/4" x 6 1/2" (438 x 692 x 165 mm)

Wall Opening

16" x 26" x 6 1/4" (406 x 660 x 159 mm)

6471

Simplicity Collection Sanitary Napkin Disposal

Features a self-closing stainless steel push door that covers the disposal opening along with a removable 1.9 gal. (7.2 L) stainless steel waste receptacle.

Model Option

64684 designed for 4" (102 mm) wall opening; dispenses 15 napkins and 23 tampons.

Unit Size

10 5/8" x 19 5/8" x 4 1/2" (270 x 498 x 114 mm)

Wall Opening

9 1/8" x 18 1/8" x 4" (232 x 460 x 102 mm)

6477

Toilet Seat Cover Dispenser

Dispenses 500 seat covers.

Unit Size

17 1/4" x 12 3/4" x 27/8" (438 x 324 x 73 mm)

Wall Opening

15 3/4" x 11½" x 2 1/2" (400 x 292 x 64 mm)

6326

Liquid Soap Dispenser

Dispenser has a covered stainless steel soap tank attached to the door, which hinges out for easy filling and cleaning. Its all-purpose valve dispenses liquid, lotion and detergent-type soaps, with a capacity of 52 fl. oz. (1.5 L).

Unit Size

10 1/4" x 6" x 6 5/8" (260 x 152 x 168 mm)

Wall Opening

9" x 4 7/8" x 4" (229 x 124 x 102 mm)

Spout Projection

2 1⁄2" (64 mm)
