RovalTM Collection
The Roval Collection has expanded! More automatic products and mirrors have been added!

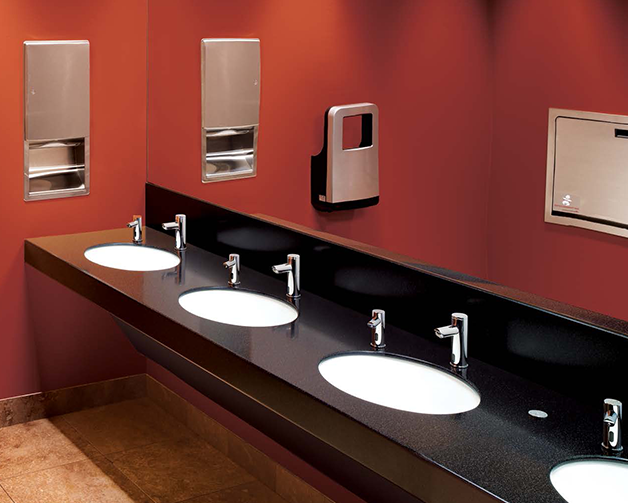

Intended for high-profile projects, this collection adds elegance to any washroom without becoming the focal point. Subtle curves, drawn one-piece seamless doors and flush tumbler locks, make the Roval™ Collection ideal for the most aesthetically demanding applications.Options
|
|
Stainless Steel Construction
Our collection is constructed of stainless steel, which is tough, durable, stain-resistant and easy to clean. |
 |
Integral Locking System
Our durable, integral locking system prevents tampering and theft. |
 |
Stacked Piano Hinges
Our heavy-duty, staked piano hinges provide security and a neat appearance, and they stand up to heavy use. |
 |
Removable Waste Receptacle
Fully removable waste cans allow contents to be easily discarded for efficient ongoing maintenance and cleanliness. |
|
RovalTM CollectionChoose the best one that suits you! |

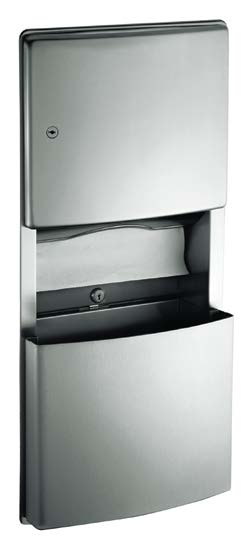

204623 Recessed Paper Towel Dispenser and Removable Waste Receptacle Dispenses 350 C-fold, 475 multi-fold paper towels. 3.0 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3⁄16" staked piano hinge on door. Model Option 204623-9 Surface mounted with 9" stainless steel collar. Unit Size 12 3/4" x 28" x 6 1/2" (325 x 710 x 165 mm) Wall Opening 11¼" x 26 7/16" x 31 5/16" (286 x 672 x 100 mm) |
20469 Recessed Paper Towel Dispenser and Waste Receptacle Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3⁄16" staked piano hinge. Model Option 20469-9 Surface mounted with 9" stainless steel collar. Unit Size 17 3/8" x 56 1/16" x 9" (441 x 1424 x 228 mm) Wall Opening 15 5/8" x 54 3/8" x 4" (397 x 1381 x 102 mm) |

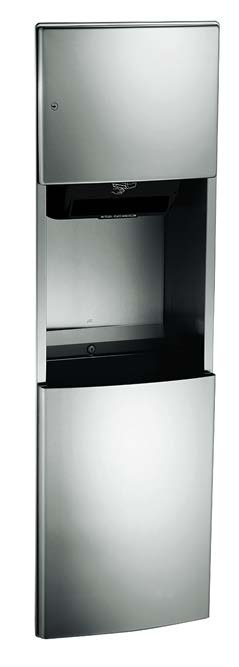

204692A Automatic Recessed Roll Paper Towel Dispenser and Waste Receptacle Fabricated of 18 gauge type 304 stainless steel. 17.8 gal. (67.2 L) removable waste receptacle. Towel length is determined by owner by setting length, delay and paper saver switches. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. Unit Size 17 3/8" x 56 1/16" x 11 11/16" (441 x 1424 x 297 mm) Wall Opening 15 13/16" x 54 11/16" x 10" (402 x 1389 x 254 mm) |

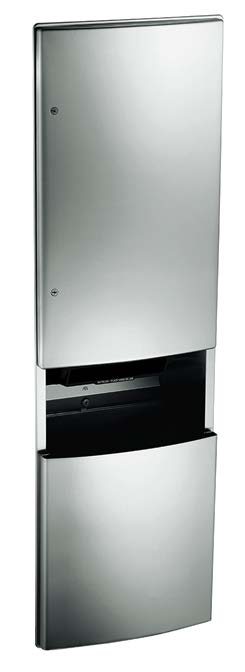

2046921A Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle for ADAAG Compliance Smaller waste receptacle, 13.5 gal. (51.1 L), allows unit to be ADA compliant. Internal shelf is ideal for paper towel storage. Towel length is determined by owner by setting length, delay and paper saver switches. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. Unit Size 17 3/8" x 56 1/16" x 11 11/16" (441 x 1424 x 297 mm) Wall Opening 15 13/16" x 54 11/16" x 10" (402 x 1389 x 254 mm) |
20826 Surface Mounted Waste Receptacle Receptacle front and sides fabricated of 20 gauge type 304 stainless steel with satin finish. Capacity 12.8 gal. (48.8 L). Model Option 20826-T Closed top, spring-loaded door. Capacity 12.8 gal. (48.8 L). Overall Dimensions 15 1/8" x 23" x 8 1/2" (384 x 584 x 216 mm) |
20458 Semi-Recessed Removable Waste Receptacle Easy maintenance—removable stainless steel waste receptacle locks into cabinet with a tumbler lock for security. Capacity 11.2 gal. (42.6 L). Fabricated of 20 gauge type 304 stainless steel with satin finish. Model Option 20826-T Closed top, spring-loaded door. Capacity 12.8 gal. (48.8 L). Overall Dimensions 17 3/8" x 27 3/4" x 8 15/16" (441 x 705 x 227 mm) |
20852 Surface Mounted Sanitary Waste Receptacle Lid is drawn one-piece construction and is secured to the cabinet with a heavy-duty 9⁄64" multi-staked concealed piano hinge. Cabinet front is formed seamless and capacity of the unit is 1 gal. (3.8 L). Overall Dimensions 7 1/4" x 10" x 3 1/2" (185 x 253 x 89 mm) |
20470 Recessed Sanitary Napkin Disposal Heavy-duty 9⁄64" staked piano hinge adds to the robust construction. Drawn one-piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1.0 gal. (3.8 L) waste capacity. Overall Dimensions 12 13/16" x 11" x 5 7/16" (325 x 280 x 138 mm) |
20452 Paper Towel Dispenser Dispenses 600 C-fold or 800 multi-fold paper towels. Door fabricated of 18 gauge type 304 drawn one-piece stainless steel with satin finish. Door secured with 3⁄16" staked piano hinge and flush tumbler lock. Overall Dimensions 12 3/4" x 28" x 5 7/16" (324 x 711 x 137 mm) |
204523A Recessed Automatic Roll Paper Towel Dispenser Fabricated of 22 gauge stainless steel with satin finish. Towel length is determined by owner by setting length, delay and paper saver switches. Suffix Options for Power/Mounting [A, A-6, A-9, AC, AC-6, AC-9] A: Powered by 4 D-size batteries (not included). AC: Powered by AC plug-in adapter. -6: Semi-recessed with 6" stainless steel collar. -9: Surface mounted with 9" stainless steel collar. Overall Dimensions 17 3/8" x 27 3/4" x 11 11/16" (441 x 705 x 297 mm) |
20210 Paper Towel Dispenser Dispenses 400 C-fold or 525 multi-fold paper towels. Fabricated of 22 gauge type 304 stainless steel with satin finish. Fitted with tumbler lock and heavy-duty stainless steel staked piano hinge. Overall Dimensions 11 1/16" x 13 9/16" x 4 7/8" (281 x 345 x 124 mm) |
20030 Surface Mounted Twin Hide-a-roll Toilet Tissue Dispenser Holds 2 rolls up to 5.25" (133 mm) diameter (double roll capacity 3600 sheets); top roll automatically drops in place when bottom roll is used up. Type 304 satin finish stainless steel cabinet and mechanism. Theft-resistant spindles with integral plated steel endpins. Model Options 20031 With flange for surface mounting. Overall Dimensions 6 1/16" x 12 1/8" x 6 1/2" (154 x 308 x 165 mm) |
9013 Recessed Stainless Steel Baby Changing Station ADA-compliant unit features welded stainless steel for long and reliable use. Exposed surfaces are satin finish. Easy one-handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb. (181 kg) load capacity assure child protection. Model Options 9013-9 Surface mounted with 9" stainless steel collar. Overall Dimensions Open: 37" x 25 1⁄2" x 17 3⁄4" (940 x 648 x 451 mm) Closed: 37" x 25 1⁄2" x 3⁄8" (940 x 648 x 10 mm) Wall Opening: 34 1⁄4" x 22 3⁄4" x 3 3⁄4" (870 x 578 x 95 mm) |
9343 Horizontal Surface Mounted Soap Dispenser All-purpose valve dispenses liquid, lotion and detergent-type soaps, with a capacity of 48 fl. oz. (1.4 L). It has a tamper-resistant refill window with concealed fastening and vandal-resistant hinged filler-top. Overall Dimensions 7 1/4" x 6 1/2" x 3 11/16" (184 x 165 x 94 mm) Spout Projection: 15⁄16" (24 mm) |
204684 Recessed Dual Sanitary Napkin and Tampon Dispenser Dispenses 31 napkins and 22 tampons. Door has 18 gauge type 304 satin finish stainless steel, with 2 flush tumbler locks. Universal coin mechanism allows for 25¢, 50¢ and free (no coin) operation. Choose appropriate suffix (-25, -50 or –F). Model Options 204684-9 Surface mounted with 9" stainless steel collar. Overall Dimensions 17 5/16" x 27 3/4" x 5 5/8" (440 x 705 x 143 mm) |
20477-SM Surface Mounted Seat Cover Dispenser Dispenses 250 seat covers. Fabricated of 20 gauge type 304 stainless steel with a satin finish. Overall Dimensions 15 3/4" x 11" x 2 3/8" (400 x 280 x 60 mm) |
20199 RovalTM Recessed High-Speed Hand Dryer This high-performing hand dryer, with a drying time of 10-15 seconds, has a cover made of 18 gauge stainless steel and uniquely complements the Roval™ Collection with its bowed face and gently radiused edges. 5-year warranty. Optional voltages available. Decible Level 69 dB-A @ 2M |

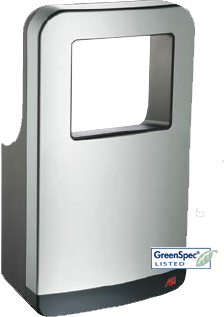

20200 Tri-UmphTM High-Speed Hand Dryer Satin look cover: ABS plastic with silver ions. Ergonomic— no need to bend over or bend knees. Air blows down and back from vents above. No water splash-back. Ultra hygienic—over 99% of airborne bacteria is eliminated with the removable Triple HEPA Filter System. 5-year warranty. Optional voltages available. Model Option 20201 White finish. Decible Level 65-69.8 dB-A @ 2M |

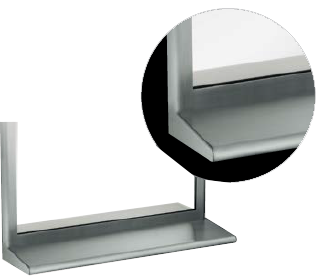

20655 RovalTM Stainless Steel Mirror with Integral Shelf The gently radiused edges provide added strength and complement the curves of the ASI Roval™ Collection. Mirror frame and 6" wide curved edge shelf are fabricated of 18 gauge type 304 stainless steel with satin finish. Mirror frame has polished seamless mitered corners and 0.25" (6.4 mm) thick plate glass mirror. Choice of sizes. Model Option 20650 Mirror without shelf. |
20692 Surface Mounted Shelf Fabricated of 18 gauge type 304 stainless steel, the 6" wide shelf has a ¾" (19 mm) gently radiused edge that uniquely complements the curves of the ASI Roval™ Collection. Choice of sizes. Overall Dimensions 6" x 12"-72" (152 x 305-1829 mm) |
|
