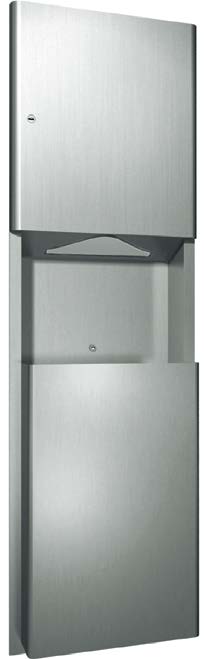

9469

Paper Towel Dispenser and Waste Receptacle

Dispenses 600 C-fold or 800 multi-fold paper towels. 15.6 gal. (59 L) waste receptacle.

Unit Size

17 1/4" x 56" x 5 3/16" (438 x 1422 x 132 mm)

Wall Opening

15 3/4" x 54 1/2" x 4" (400 x 1384 x 102 mm)

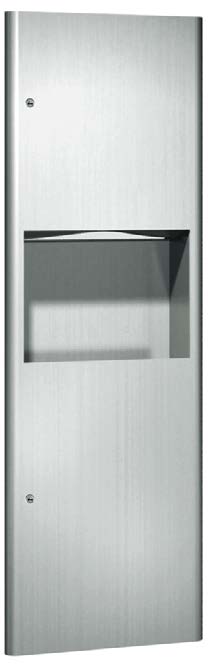

9462

Paper Towel Dispenser and Waste Receptacle

Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels. 9 gal. (34 L) stainless steel waste receptacle.

Unit Size

17 1/4" x 54" x 61 5/16" (438 x 1372 x 176 mm)

Wall Opening

15 3/4" x 52 1/2" x 6" (400 x 1334 x 152 mm)

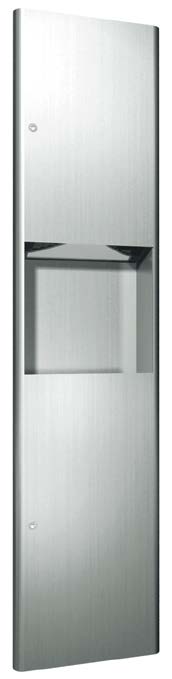

9467

Paper Towel Dispenser and Waste Receptacle

Dispenses 600 C-fold or 900 multi-fold paper towels. 5 gal. (18.9 L) stainless steel waste receptacle.

Model Options

94676 dispenses 1100 single-fold towels and has push door and 7 gal. (26.5 L) capacity.

9467 Unit Size

13" x 55" x 5 3/16" (330 x 1397 x 132 mm)

9467 Wall Opening

11 1/2" x 53 1/2" x 4 1/4" (292 x 1359 x 108 mm)

94676 Unit Size

13" x 55" x 7 3/16" (330 x 1397 x 183 mm)

94676 Wall Opening

11 1/2" x 53 1/2" x 6 1/4" (292 x 1359 x 159 mm)

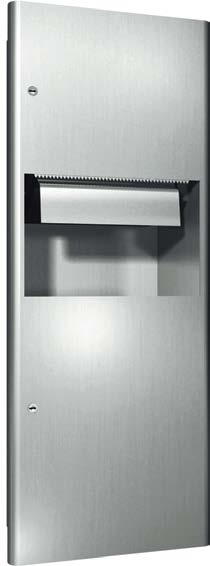

94696A

Automatic Roll Paper Towel Dispenser and Waste Receptacle

Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8" or 9" (205 or 230 mm) wide, 800 ft. (244 m) long rolls. 10 gal. (37.8 L) stainless steel waste receptacle.

Suffix Options for Power/Mounting

[A, A-6, A-9, AC, AC-6, AC-9]

A: Powered by 4 D-size batteries (not included).

AC: Powered by AC plug-in adapter.

-6: Semi-recessed with 6" stainless steel collar.

-9: Surface mounted with 9" stainless steel collar.

94696: Mechanical lever dispenser.

Unit Size

16 1/16" x 41 1/4" x 10 11/16" (408 x 1048 x 272 mm)

Wall Opening

14 5/8" x 39 3/4" x 10" (371 x 1010 x 254 mm)

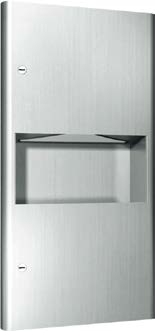

94623

Paper Towel Dispenser and Waste Receptacle

Dispenses 350 C-fold or 475 multi-fold paper towels and has a built-in 2 gal. (7.6 L) stainless steel waste receptacle.

Unit Size

14 1/4" x 28" x 4 15/16" (362 x 711 x 125 mm)

Wall Opening

12 3/4" x 26 1/2" x 4 1/4" (324 x 673 x 108 mm)

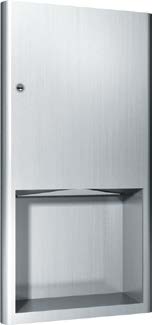

9452

Paper Towel Dispenser

Dispenses 600 C-fold or 800 multi-fold paper towels.

Unit Size

14 1/4" x 28" x 4 15/16" (362 x 711 x 125 mm)

Wall Opening

12 3/4" x 26 1/2" x 4 1/4" (324 x 673 x 108 mm)

9457

Paper Towel Dispenser

Dispenses 350 C-fold or 475 multi-fold paper towels.

Unit Size

12 3/4" x 17 1/4" x 4 15/16" (324 x 438 x 125 mm)

Wall Opening

11 1/4" x 15 3/4" x 4 1/4" (286 x 400 x 108 mm)

9459

Waste Receptacle

Stainless steel waste receptacle holds 4 gal. (15 L) of waste and has a self-closing panel that covers its opening.

Unit Size

14 1/4" x 28" x 4 15/16" (362 x 711 x 125 mm)

Wall Opening

12 3/4" x 26 1/2" x 4 1/4" (324 x 673 x 108 mm)

9474

Waste Receptacle

Stainless steel waste receptacle holds 12 gal. (45.4 L) of washroom waste materials.

Unit Size

171/4" x 40" x 73/16" (438 x 1016 x 183 mm)

Wall Opening

15 3/4" x 38 1/2" x 6 1/4" (400 x 978 x 159 mm)

9468

Dual Napkin/Tampon Vendor

Dispenses 30 feminine napkins and 27 tampons using 25¢, 50¢ or free operation. Its door has 2 tumbler locks. Its inside coin box has a separately keyed lock.

Model Option

94684 designed for 4" (102 mm) wall opening; dispenses 15 napkins and 23 tampons.

Unit Size

17 1/4" x 27 1/4" x 6 15/16" (438 x 692 x 176 mm)

Wall Opening

16" x 26" x 6 1/4" (406 x 660 x 159 mm)

9471

Profile Collection Sanitary Napkin Disposal

Features a self-closing stainless steel push door that covers the disposal opening along with a removable 1.9 gal. (7.2 L) stainless steel waste receptacle.

Unit Size

10 5/8" x 19 5/8" x 4 15/16" (270 x 498 x 125 mm)

Wall Opening

9 1/8" x 18 1/8" x 4 1/4" (232 x 460 x 108 mm)

9326

Liquid Soap Dispenser

Dispenser has a covered stainless steel soap tank attached to the door, which hinges out for easy filling and cleaning. Its all-purpose valve dispenses liquid, lotion and detergent-type soaps, with a capacity of 52 fl. oz. (1.5 L).

Unit Size

10 1/4" x 6" x 7 3/16" (260 x 152 x 183 mm)

Wall Opening

9" x 4 7/8" x 4 1/4" (229 x 124 x 108 mm)

Spout Projection

2 1⁄4" (57 mm)

9343

Horizontal Surface Mounted Soap Dispenser

All-purpose valve dispenses liquid, lotion and detergent-type soaps, with a capacity of 48 fl. oz. (1.4 L). It has a tamper-resistant refill window with concealed fastening and vandal-resistant hinged filler-top.

Overall Dimensions

7 1/4" x 6 1/2" x 3 11/16" (184 x 165 x 94 mm)

Spout Projection: 15⁄16" (24 mm)

9477

Toilet Seat Cover Dispenser

Dispenses 500 seat covers.

Unit Size

17 1/4" x 12 3/4" x 3 5/16" (438 x 324 x 73 mm)

Wall Opening

15 3/4" x 11 1/4" x 2 5/8" (400 x 285 x 67 mm)

9030

Surface Mounted Dual Roll Toilet Tissue Dispenser

Type 304 stainless steel cabinet with mechanism for theft-resistant spindles holds 2 rolls up to 51/4" (135 mm) diameter (1800 sheets); the top roll automatically drops in place when the bottom roll is used up.

Overall Dimensions

6" x 12" x 6 1/4" (152 x 305 x 159 mm)

9031

Recessed Dual Roll Toilet Tissue Dispenser

Type 304 stainless steel cabinet with mechanism for theft-resistant spindles holds 2 rolls up to 51/4" (135 mm) diameter (1800 sheets); the top roll automatically drops in place when the bottom roll is used up.

Overall Dimensions

8" x 14" x 6 1/4" (203 x 356 x 159 mm) with flange for recessing
