0398

Recessed Heavy Duty Stainless Steel Soap Dish and Bar

Type 304 stainless steel unit with bright polished finish exterior and sand blasted finish interior. Includes mounting clamp for stud walls.

Overall Dimensions

7 1⁄8" x 5" x 4" (181 x 127 x 102 mm)

Wall Opening

6 1⁄8" x 4 1⁄8" x 4" (156 x 105 x 102 mm)

Model Options

0399 Same as 0398, but includes kit for installing in cement wall.

0400 Without bar.

0401 Same as 0400, but includes kit for installing in cement wall.

0410-Z

Recessed Soap Dish with Bar

Die-cast of Zamac in seamless one-piece construction. A plastic soap tray with drying ribs interlocks with housing for retention.

Wall Opening

6 1⁄4" x 6 1⁄4" x 3 3⁄8" (159 x 159 x 86 mm)

7404

Recessed Soap Dish

Seamless one-piece construction fabricated of 22 gauge stainless steel type 304. Provided with a raised lip to retain soap.

Overall Dimensions

61⁄4" x 65⁄8" x 2" (159 x 160 x 51 mm)

7410

Recessed Soap Dish and Bar

One-piece construction soap dish fabricated of 22 gauge 304 stainless steel. Includes a bar, held permanently between two posts at top of unit.

Overall Dimensions

6 5⁄16" x 6 1⁄4"x 3" (160 x 159 x 76 mm)

1204

Extra Heavy-Duty Shower Curtain Rod

33⁄16" (81 mm) diameter flanges of 20 gauge type 304 stainless steel with satin finish and 11/4" (32 mm) diameter rod of 18 gauge type 304 stainless steel tubing with satin finish. Available in lengths up to 96" (2438 mm); special order on longer lengths.

1214

Heavy-Duty Shower Curtain Rod

20 gauge, 11⁄64" (26 mm) diameter rod. Available in lengths up to 72" (1829 mm); for longer lengths, specify 1204.

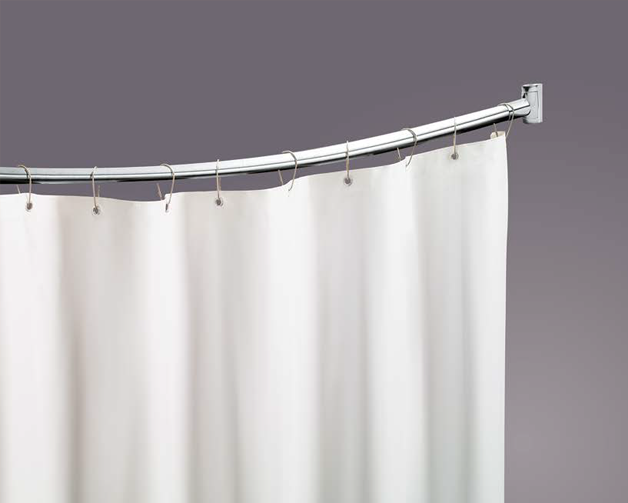

1201-A

Curved Shower Curtain Rod with Mounting Brackets

Fabricated of type 304 stainless steel. Tubing is 18 gauge, 1" DIA (25 mm) with a satin finish. Length is suitable for a 60" (1524 mm) wide enclosure either on opposite walls (-B) or across the face opening (-A) depending upon rod length chosen.

Model Options

1201-B Curved shower curtain rod with mounting brackets for opposite walls

1224

Concealed Mounting Shower Curtain Rod

Chrome plated brass with satin finish flanges and 1" (25 mm) diameter rod of 20 gauge type 304 stainless steel with satin finish. One flange has set screw to lock rod and prevent rotation. Available in lengths up to 72" (1829 mm); for longer lengths, specify 1204.

1200-SHU

Shower Curtain Hook

Stainless steel hook for rods 1" (25 mm) and 1¼" (32 mm) diameter. Size: 19/16" x 25/8" (40 x 67 mm).

1200-V

Vinyl Shower Cutain

Flame-resistant, anti-bacterial, 8 gauge white vinyl fabric with standard height of 72" (1829 mm). Curtain should be 6" (152 mm) wider than opening up to 42" (1067 mm) and 12" (305 mm) wider than opening exceeding 42" (1067 mm).

8208-R

Folding Shower Seat

Slats are fabricated with stainless steel in satin finish.

Model Option

8208-L Similar to 8206-R, but with left hand seat.

0010

Corner Shower Seat

Seat, support brackets and retainer clip are type 304 satin finish stainless steel. Seat is secured to one wall with full length piano hinge and support on other wall by bracket. Size: 153/4" x 153/4" (400 x 400 mm)

8358

Folding Tub Seat

1/2" (13 mm) thick, solid, white colored, black core phenolic seat. Frame, mounting bracket and retainer hook are type 304 satin finished stainless steel. Seat measures 15" (387 mm) wide and projects 333/4" (860 mm) from wall.

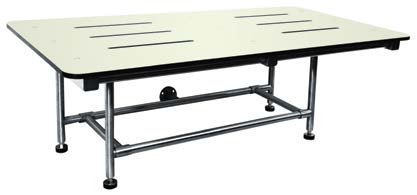

8209

Rectangular Phenolic Four-leg Fold-up Shower Bench

Seat is white colored, black core phenolic. Frame, mounting bracket and retainer hook are type 304 satin finished stainless steel. Seat is 221/2" (572 mm) deep and 48" (1219 mm) wide, projecting 24" (610 mm) from the wall when in the open position. When retracted, legs fold up to provide low profile against wall.

8206-L

Folding Shower Seat

(Left Hand) Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½" (13 mm) thick, one-piece, solid, white colored, black core phenolic. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33" (838 mm) wide and projects 227⁄8" (581 mm) from wall.

Model Options

8206-R Right hand seat.

8205-L Left hand seat with cushion covered in off-white Naugahyde®.

8205-R Right hand seat with cushion covered in off-white Naugahyde®.

8208-L Left hand stainless steel seat.

8208-R Right hand stainless steel seat.

8203

Compacting Folding Seat

5/16" (8 mm) thick, one-piece, solid, white colored, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a self-locking mechanism. Seat measures 18" (457 mm) wide and projects 16" (406 mm) from wall. Additional width options are available in 20", 22", 24", 28" and 33" (order with suffix -20, -22, -23, -28 and -33).

Model Options

8204 Seat is sponge cushion covered with off-white Naugahyde® mounted on ½" (13 mm) thick marine grade plywood.

8207 Seat is fabricated of stainless steel, satin finish, slatted design.

8202

L-Shaped Phenolic Four-Leg Fold-Up Shower Seat

Seat is ½" (13mm) thick solid phenolic, with white top and bottom surfaces and black edges, and is field reversible for left or right hand. Rear load feet remain on floor with rear frame mounted to wall and never need adjustment after correct installation. Front legs fold up automatically when seat is raised. Gravity prevents seat from dropping. Shower seat exceed ADA Accessibility Guidelines when mounted properly.
