0690

Shelf with Raised Edges

Entire unit is formed of one-piece of 18 gauge stainless steel having a 3⁄8" (10 mm) depression with a satin finish.

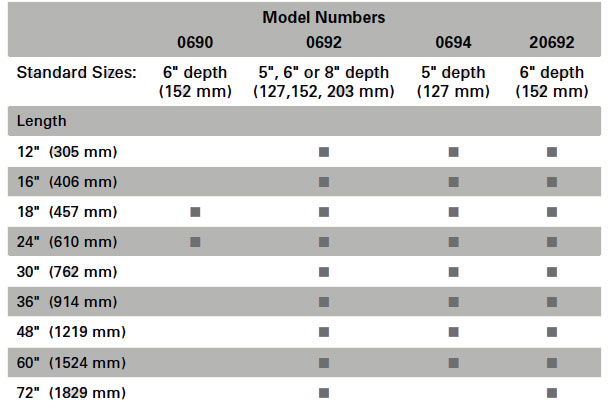

See chart for standard sizes.

0692

Shelf

Fabricated of 18 gauge stainless steel with a satin finish. Front edge is hemmed for maximum rigidity and safety.

See chart for standard sizes.

0698

Folding Utility Shelf for Toilet Compartments

Fabricated of 18 gauge type 304 satin finish stainless steel with raised rim. It returns to upright position when not in use.

Overall Dimensions

14 5⁄8" x 5 13⁄16" (371 x 148 mm)

0412

Recessed Shelf

This unit is fabricated of 22 gauge, all welded construction, stainless steel with a satin finish.

Overall Dimensions

18" x 8" x 4 1/4" min (457 x 203 x 108 mm)

Wall Opening

16 1/2" x 6 1/2" x 4" min (419 x 165 x 102 mm)

0694

Shelf with Backsplash

Fabricated of 18 gauge stainless steel with a satin finish on exposed surfaces with 5" (127 mm) depth.

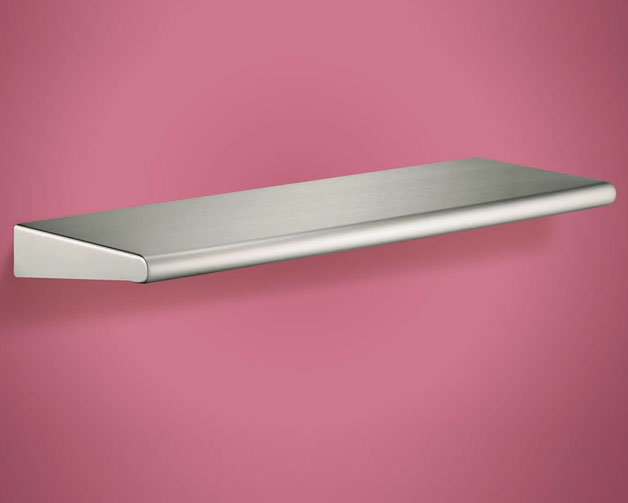

20692

Surface Mounted Shelf

Fabricated of 18 gauge type 304 stainless steel, the 6" wide shelf has a ¾" (19 mm) gently radiused edge that uniquely complements the curves of the ASI Roval™ Collection. Choice of sizes.

Overall Dimensions

6" x 12"-72" (152 x 305-1829 mm)
