122

Square Clothes Hook- Rear Mounting

Fabricated of 12 gauge type 304 stainless steel with a satin finish. Back plate is fabricated of 14 gauge stainless steel. If hook is excessively loaded, it will snap down for safety. Unit has four studs welded on back for rear mounting.

Model Option

123 Front mounted hook.

Overall Dimensions

4 1/4" x 4 1/4" x 2 1⁄4" (108 x 108 x 57 mm)

170

Retractable Shower Seat - Front Mounting

Seat folds up into cabinet. Fabricated of 12 gauge stainless steel, exposed surfaces have a satin finish. Seat has reinforced channels. Wall sub frame furnished with welded-on masonry anchors. Seat shall have a flush, stainless steel, self-latching pull handle, which is accessible when unit is closed..

Sub Frame Opening

13 1/2" x 13 1/2" x 2 1/2" (343 x 343 x 64 mm).

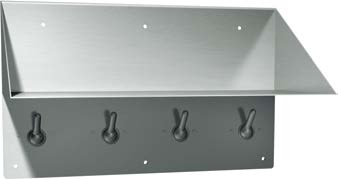

128-1

Book Shelf/ Clothes Hook- Front Mounting

Shelf and back plate are 14 gauge stainless steel type 304 with satin finish. Hooks are 12 gauge stainless steel and back plate is 14 gauge stainless steel. Seams are welded and ground smooth. Hooks snap down for safety if excessively loaded. Unit has six holes through back for front mounting.

Overall Dimensions

18" x 11" x 8" (457 x 279 x 203 mm)

120

Clothes Hook- Front Mounting

Bracket 11 gauge, hook 7 gauge type 304 stainless steel with satin finish. If hook is excessively loaded, it will snap down for safety. Unit has four holes through flange for front mounting.

Overall Dimensions

3" x 5" x 3 1⁄16" (76 x 127 x 78 mm)

165

Grab Bar

Tubing 18 gauge and flanges 1⁄8" (3 mm) thick stainless steel type 304 with satin finish. Closure plate is 1⁄8" (3 mm) thick. All welded construction. Unit has three holes through each flange for front mounting.

*Special “closure plate” for security applications

Model Options

0198-MH

Safe-Dri^TM Mental Health Approved High-Speed Hand Dryer

Anti-ligature dryer designed for Behavioral Health environments—angled top, welded corners and single tube exhaust prevent looping, tying off, wedging and prying. Tamper-resistant 18 gauge stainless steel cover, and flush pin-hex security screws. Optional voltages available.

Unit Size

12 5/8" x 15 3/4" x 5 4/16"(320 x 400 x 140 mm)

Wall Opening

11 7/8" x 14 3/4" x 5 1/8" (303 x 376 x 130 mm)

Decibel Level

66 dB-A @ 2M

110-1

Square Recessed Toilet Tissue Holder- Read Mounting

Fabricated of 14 gauge type 304 stainless steel with satin finish exterior, glass blasted satin finish interior 41/2" (114 mm) deep accommodates one standard toilet tissue roll. Flange is 7" (179 mm) square.

Model Option

110-13 Front mounted holder.

110

Recessed Toilet Tissue Holder- Rear Mounting

Fabricated of 16 gauge type 304 stainless steel, satin finish exterior, glass blasted satin finish interior. 41⁄2" (114 mm) interior depth accommodates one standard toilet tissue roll. Hidden contraband causes roll to project from holder allowing detection. Two “T” nuts welded on back for rear mounting.

Model Options

110-A 7 1/4" (184 mm) DIA

Overall Dimensions

7 1/4" (184 mm) DIA

101

Chase Mounted Security Mirror

Frame 14 gauge type 304 stainless steel with satin finish, corners welded and ground smooth. Unit provided with fiberboard backing and six “T” nuts welded on back for rear mounting. Specify wall thickness if greater than 6" (152 mm).

Overall Dimensions

12" x 16" x 5⁄8" (305 x 406 x 16 mm)

104

Framed Mirror- Front Mounting

Unit consists of wall mounting plate fabricated of 7 gauge type 304 stainless steel with four countersunk mounting holes and eight tapped holes. Formed mirror fabricated of 18 gauge type 304 stainless steel with #8 mirror polish finish provided with eight dimpled holes through integral frame and 1⁄4-20 x 1⁄4" Torx® head screws for securing to wall mounting plate. For 20 gauge No. 8 mirror polish finish specify option by adding suffix to Model No. (e.g., 104-14).

Overall Dimensions

10 1⁄16" x 11 9⁄16" x 7⁄16" (256 x 294 x 11 mm)

105

Surface Mounted Security Framed Mirror

Frame 14 gauge type 304 stainless steel with satin finish, corners welded and ground smooth. Front mounting furnished with Torx® vandal-resistant 1⁄4-20" x 2 (150 mm) machine screws.

Overall Dimensions

12" x 16" x 5⁄8" (305 x 406 x 16 mm)

129

Clothes/Towel Hook Strip- Front Mounting

Fabricated of 14 gauge stainless steel type 304 with satin finish. Hooks snap down for safety if excessively loaded. Six holes through back for front mounting.

Overall Dimensions

18" x 5 1⁄2" x 2 1⁄4" (457 x 140 x 57 mm)

127

Clothes/Towel Hook Strip- Front Mounting

Wall plate 14 gauge with beveled edges, 11 gauge brackets and four 7 gauge hooks. Stainless steel type 304 with satin finish. Hooks snap down for safety if excessively loaded. Unit has six mounting holes through back for front mounting.

Overall Dimensions

18" x 5 1⁄2" x 3" (457 x 140 x 76 mm)

130

Recessed Shelf- Rear Mounting

Shelf 16 gauge type 304 stainless steel, corners welded and ground smooth. 1" (25 mm) wide beveled satin finish trim. Interior glass blasted finish. Unit has four studs welded on back for rear mounting.

Overall Dimensions

18" x 7" x 4" (457 x 178 x 102 mm)

Wall Opening

5 1/2" x 16 1/2" (141 x 419 mm)

140

Rear Mounting Recessed Soap Dish

Soap dish 16 gauge stainless steel type 304 with satin finish. One-piece drawn construction with beveled trim and embossments for air circulation and drainage. Unit has two “T” nuts welded on back for rear mounting.

Overall Dimensions

7 3⁄8" x 6" x 3" (187 x 152 x 76 mm)

Wall Opening

6 1/2" x 5 x 2 3/4" min (165 x 127 x 70 mm)

107

One-piece Framed Mirror with Rounded Corners- Front Mounting

One-piece 18 gauge type 304 stainless steel formed mirror with #8 mirror polish finish, integral frame, rounded corners and six mounting holes.

Overall Dimensions

12" x 16" x 1⁄4" (305 x 406 x 6 mm)
