9052

Recessed Stainless Steel Medicine Cabinet

Swing door mirror frame is type 304 stainless steel with satin finish. Mirror is ¼" (6 mm), guaranteed for 15 years against silver spoilage. Door has full length piano hinge and magnetic catch. Three removable stainless steel shelves.

Overall Dimensions

18 1/4" x 24 1/4" x 4 1/2" (464 x 616 x 114 mm)

Wall Opening

16" x 22 3/4" x 3 1/2" (406 x 578 x 89 mm)

Model Option

0952-B Larger than 0952.

Overall Dimensions

24" x 26" x 4 7/8" (610 x 660 x 124 mm)

0953

Surface Mounted Stainless Steel Medicine Cabinet

Surface mounted cabinet is made from 20 gauge stainless steel with a satin finish. Mirrored door is hung on cabinet with a full length 3/16" staked piano hinge. Cabinet has three adjustable stainless steel shelves.

Overall Dimensions

18 1/4" x 24 1/4" x 4 3/4" (464 x 616 x 121 mm)

8340

Power Coated Recessed Medicine Cabinet

One-piece, drawn cold rolled steel with white powder coated steel finish. Stainless steel channel framed mirrored door with ¼" (6 mm) thick plate glass, has continuous piano hinge and magnetic catch. Three removable white enamel steel shelves.

Overall Dimensions

18 1/4" x 24 1/4" x 4 7/8" (465 x 615 x 120 mm)

Wall Opening

16" x 22 3/4" x 3 1/2" (406 x 578 x 89 mm)

Model Option

8338 Smaller and has two adjustable white baked enamel steel shelves. 14 1/8" x 20 3/16" x 5" (359 x 513 x 125 mm)

8339 Larger than 8338. 16 3⁄16" x 22 3⁄16" x 5" (411 x 564 x 127 mm)

0533-48

Corner Guard

Surface Mounted Corner Guard comes in multiple sizes and mounting options. Robust 18 gauge stainless steel protects corners and is finished with a 1/8" radius outside edge. Guard can be mounted flush to floor or at base height. Ideal for a variety of applications. Standard mounting is with adhesive. Optional screw mounting available on request.

*Call for optional sizes

Overall Dimensions

48" x 4 1/4" x 4 1/4" (1219 x 108 x 108 mm)

8154

Pass-Through Specimen Cabinet

Provides a convenient passage from patient area into laboratory. Fabricated of 22 gauge type 304 satin finish stainless steel. Internal latch prevents simultaneous door opening. Stainless steel tray is removable. Mounts in wall thickness of 1¾" to 5½" (44 to 140 mm).

Model Options

8155 Extension sleeve and flange for recessed specimen pass-through cabinet.

8156 Same as 8154 including 8155 extension sleeve.

0350

Surgical Soap Dispenser

Dispenses antiseptic solutions and synthetic detergent soaps. Chrome plated brass body. Capacity: 16 oz. (0.5 L) white polyethylene globe..

Overall Dimensions

3 3/8" x 6 1/2" x 5 1/8" (86 x 165 x 130 mm)

0547

Narcotics Cabinet- Combination Lock/Dual Doors

Security cabinet for controlled narcotic substances is surface mounted and constructed from 304 alloy 18-8 stainless steel of double wall all welded construction. Cabinet is 22 gauge and doors are 18 gauge.

Overall Dimensions

11 1/4" x 15" x 8 1/4" (286 x 381 x 210 mm)

0546

Security Medicine Cabinet

Stainless steel satin finish shelves are 20 gauge with hemmed edges and are easily adjusted by owner using track clips provided. Two (2) shelves and eight (8) clips are provided.

Overall Dimensions

30" x 26" x 13" (762 x 660 x 305 mm)

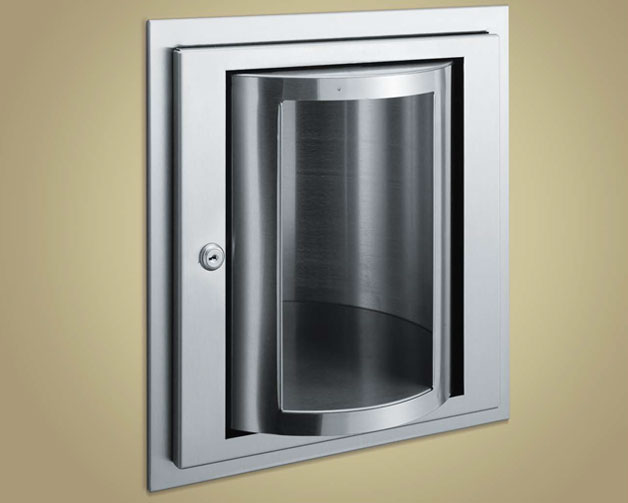

0515

Turntable Specimen Pass Box

Fabricated of 18 gauge type 304 satin finish stainless steel. Turntable cylinder is 12" (305 mm) diameter with 10½" x 6" (267 x 152 mm) opening. Stainless steel self-lubricating ball bearing plates mounted on top and bottom permit the unit to rotate freely. Positioned bullet catches prevent uncontrolled rotation. Entire inner assembly is encased in 1" (25 mm) wide trim. Cylinder lock allows for the removal of the cylinder for sterilizing or autoclaving when necessary. Trim is adjustable for wall up to 7" (178 mm) thick.

0349

Foot Operated Surgical Soap Dispenser

Pneumatic pump mechanism, 32 oz. (0.9 L) polyethylene container. Free turning spout is type 316 stainless steel. 96" (2438 mm) long vinyl tubing attaches to anti-slip foot pump. Dispenses surgical soaps, antiseptic solutions and synthetic detergents.

Overall Dimensions

4 1/4" x 12 3/4" x 9" (108 x 324 x 229 mm)

Spout Projection

4 3⁄4" (121 mm)

0551

Recessed Bedpan and Urinal Bottle Cabinet

Recessed cabinet is 22 gauge type 304 satin finish stainless steel for storage of bedpan and urinal. Cabinet provided with ½" (13 mm) open space across top and bottom of door to allow air circulation.

Model Option

0558-1 RECESSED BEDPAN AND WASHBASIN CABINET Holds one conventional type bedpan and one wash basin.

0557

Surface Mounted Bedpan Rack

Surface mounted rack provides convenient storage for one conventional sized bedpan.

Overall Dimensions

12" x 11" x 4 7/8" (305 x 279 x 124 mm)

Model Options

0556 SURFACE MOUNTED BEDPAN AND URINAL RACK Larger for storing one conventional sized bedpan and one urinal bottle.

0559 SURFACE MOUNTED DOUBLE BEDPAN RACK Similar to 0556, but designed to hold two conventional sized bedpans.
